КОС-ЗOO





Facility: the production and assembly of the equipment to the facility "КОС-ЗOO" "Construction of sewage treatment facilities with capacity of 300,000 m3 per day" in Turkmenistan, Ashkhabad.



Equipment: FAAS Trading Co has implemented a comprehensive supply of equipment including:



• 10 kV distribution point - 29 cells;



• reactive power compensation-10kV-900kVAr - 2 pcs.;

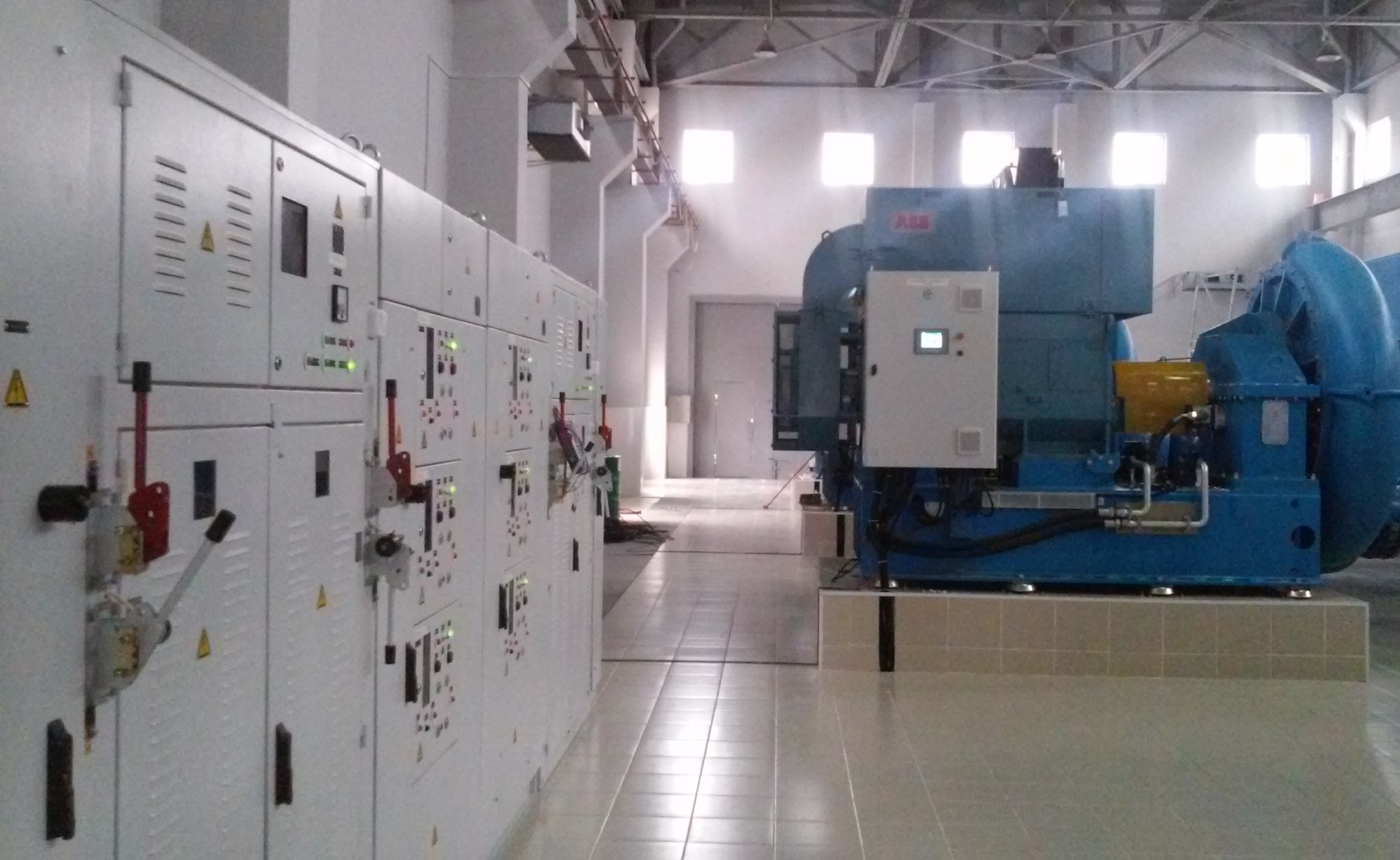

• soft start system of six blowers equipped with asynchronous motors AM1 450L2A BSS of 1000 kW capacity, based on two devices;



• 10 kV gas-insulated monoblocks – 13 pcs.;



• 0.4 kV switchgears - 15 sections;



• three-phase dry power transformers with the capacity of 160kVA up to 2500kVA with the voltage of 10/0,4 kV with the Trihal cast isolation in a metal sheath (IP31) windings connection group "triangle-star-11" with the neutral available with the forced ventilation - 15 pcs.;



• busbar system from 1600A to 4000A - 7 pcs.

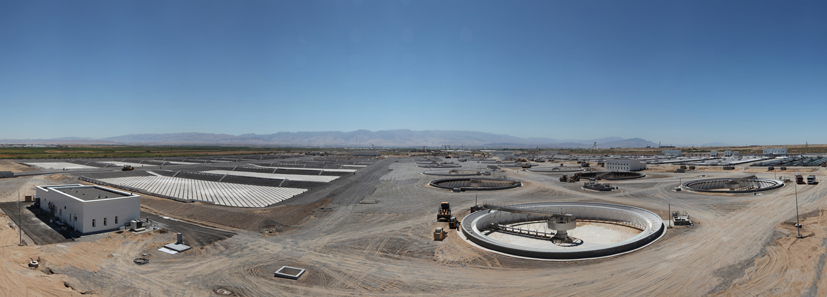

Some information about the facility:



The total area of the building site is 75 ha. Purification workflow is provided by the following buildings and structures placed on the site:



• main sewage pumping station



• receiving chamber



• building of lattices (2 pieces)



• sand traps (8 pipelines)



• activated sludge unit (16 pieces)



• secondary settling tanks (16 pieces)



• pump station of the secondary settling tanks discharging (4 pieces)



• sludge pump station (2 pieces)



• blowing house (1 building)



• sludge thickeners (3 pieces)



• aerobic stabilizers (4 piece)



• effluents decontamination unit (1 pieces)



• sludge drying beds (16 pieces)



• sand bunkers building (2 pieces)



• water supply unit (1 pc).



Besides these technological facilities the administration block, garage for 10 cars, wheels wash and car repairs trestle are located on-site.
